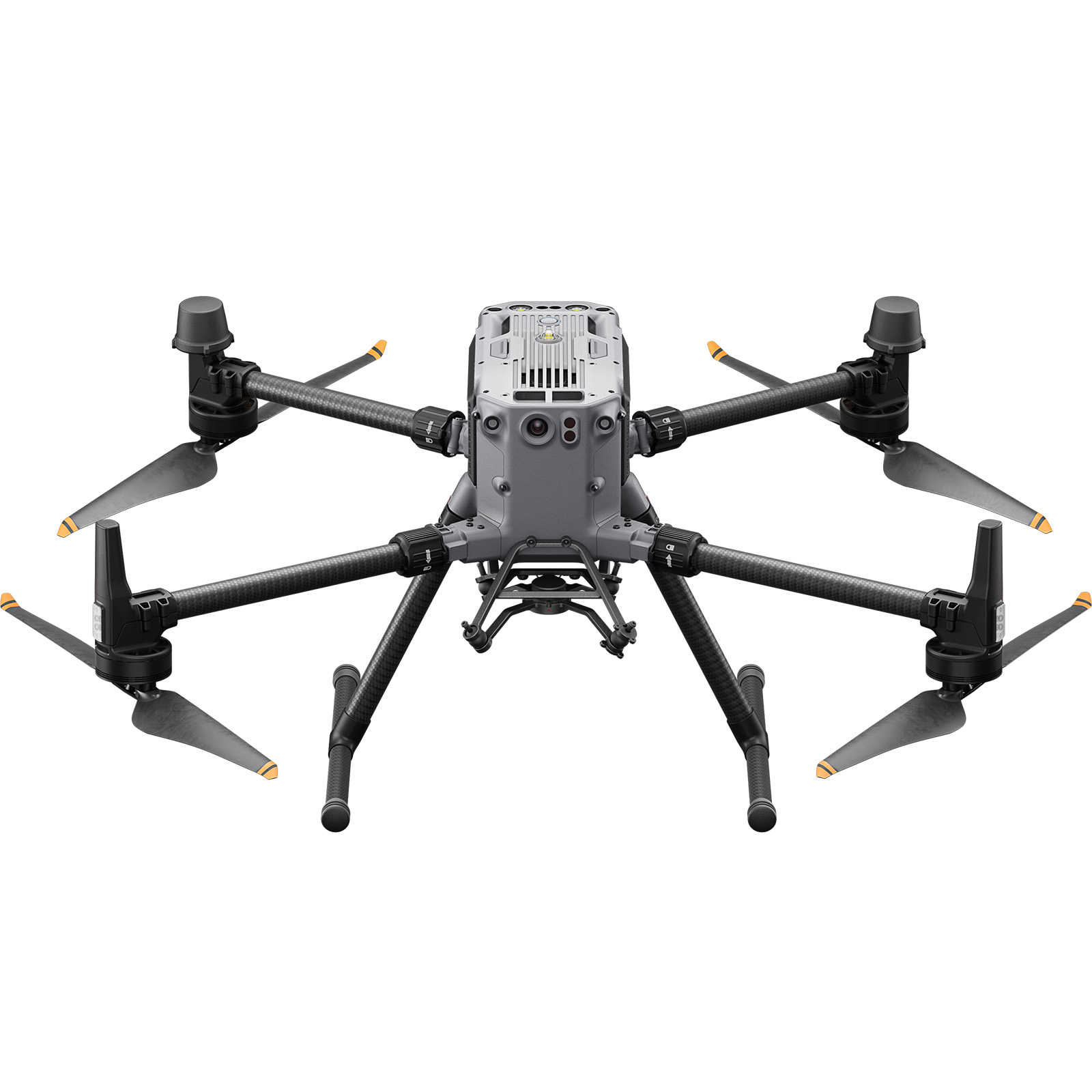

DJI Matrice 350 RTK power for progress

Effortlessly Powerful Flight Performance

Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to effortlessly tackle a wide variety of challenges.

Powerful flight made easy

DJI Matrice 350 RTK has a robust design and powerful propulsion. What’s more, it boasts an enhanced protection rating and excellent flight performance, for effortless handling of a wide variety of challenges.

55 min[1]

Max. flight time

IP55[2]

Protection class

2.7 kg

Max. payload

7 000 m[4]

Max. flight altitude

12 m/s

Resistance to max. wind speed

-20 to 50°C

Operating temperature

A new transmission system for assured stability

O3 Enterprise transmission

DJI Matrice 350 RTK incorporates DJI Transmission O3 Enterprise, which supports three-channel 1080p HD live feeds and a maximum transmission distance of 20 km. What’s more, the device and radio control feature a four-antenna transceiver system that intelligently selects the two optimal antennas for signal transmission, with all four antennas receiving signals simultaneously. Finally, anti-interference capabilities are considerably enhanced and transmission stability optimized.

A new control experience

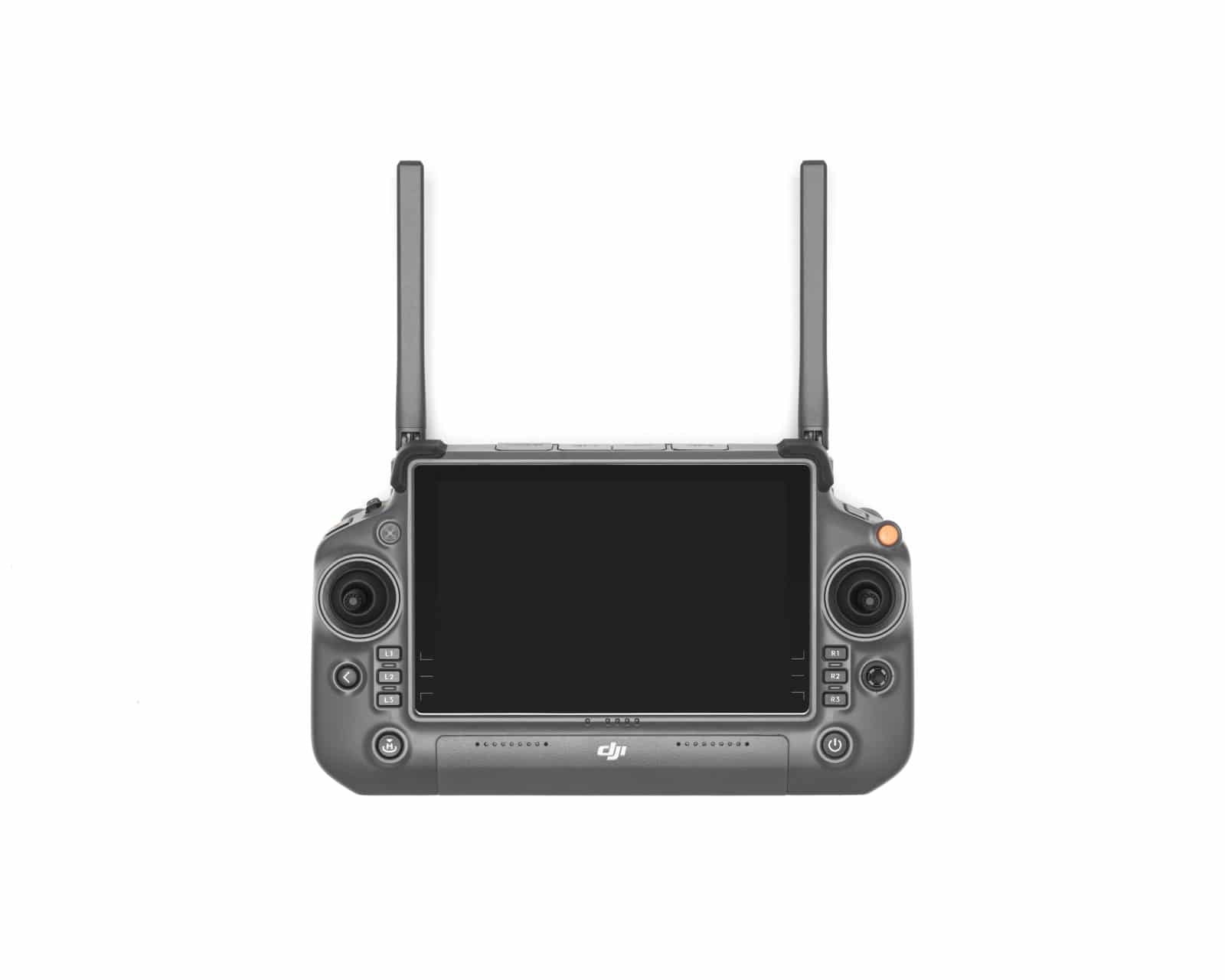

DJI RC Plus

Equipped with a high-brightness 7-inch display, DJI RC Plus supports Dual Operator mode and comes with a standard WB37 external battery. What’s more, it offers up to six hours of autonomy for versatile use.

Ready for demanding environments

With an IP54 protection rating, DJI RC Plus is dust-tight and waterproof for reliable operation in bad weather. Finally, the operating temperature range extends from -20 to 50° C (-4 to 122° F), allowing 24-hour operation, even in extremely hot or cold environments.

Smooth, efficient control

Several buttons and knobs are featured on the front, back and top of the radio control unit for fast operation. What’s more, button functions can be customized to suit user preferences and provide an intuitive, flexible experience.

DJI Pilot 2

The DJI Pilot 2 application has been optimized for clear presentation of mission type and flight status. Finally, the ease and fluidity of aircraft and payload control enhance operational efficiency.

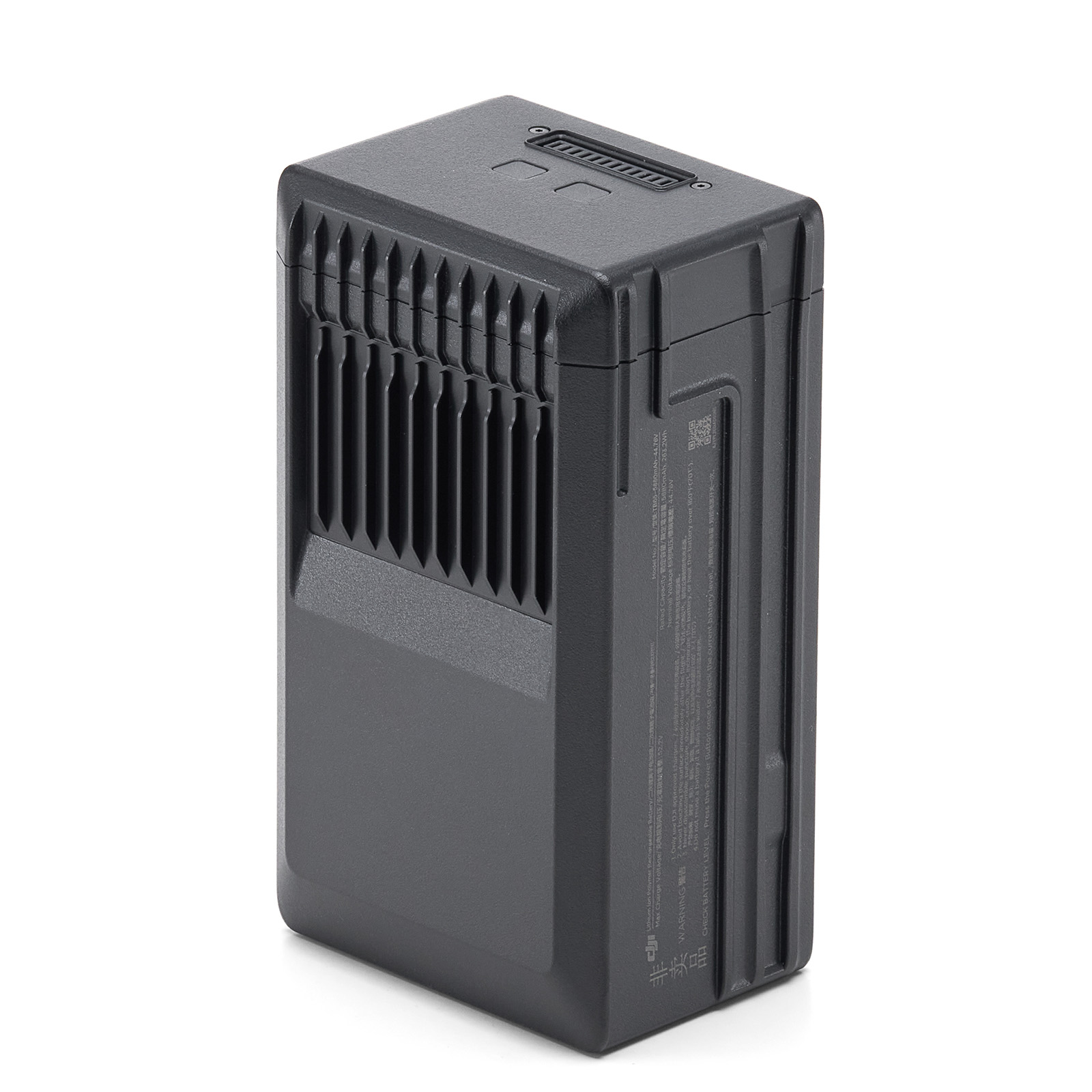

New dual-battery system

DJI Matrice 350 RTK features a new TB65 dual-battery system, allowing hot-swapping of the battery and multiple flights without downtime. What’s more, the battery can be recharged up to 400 cycles[3], reducing the cost of a single flight.

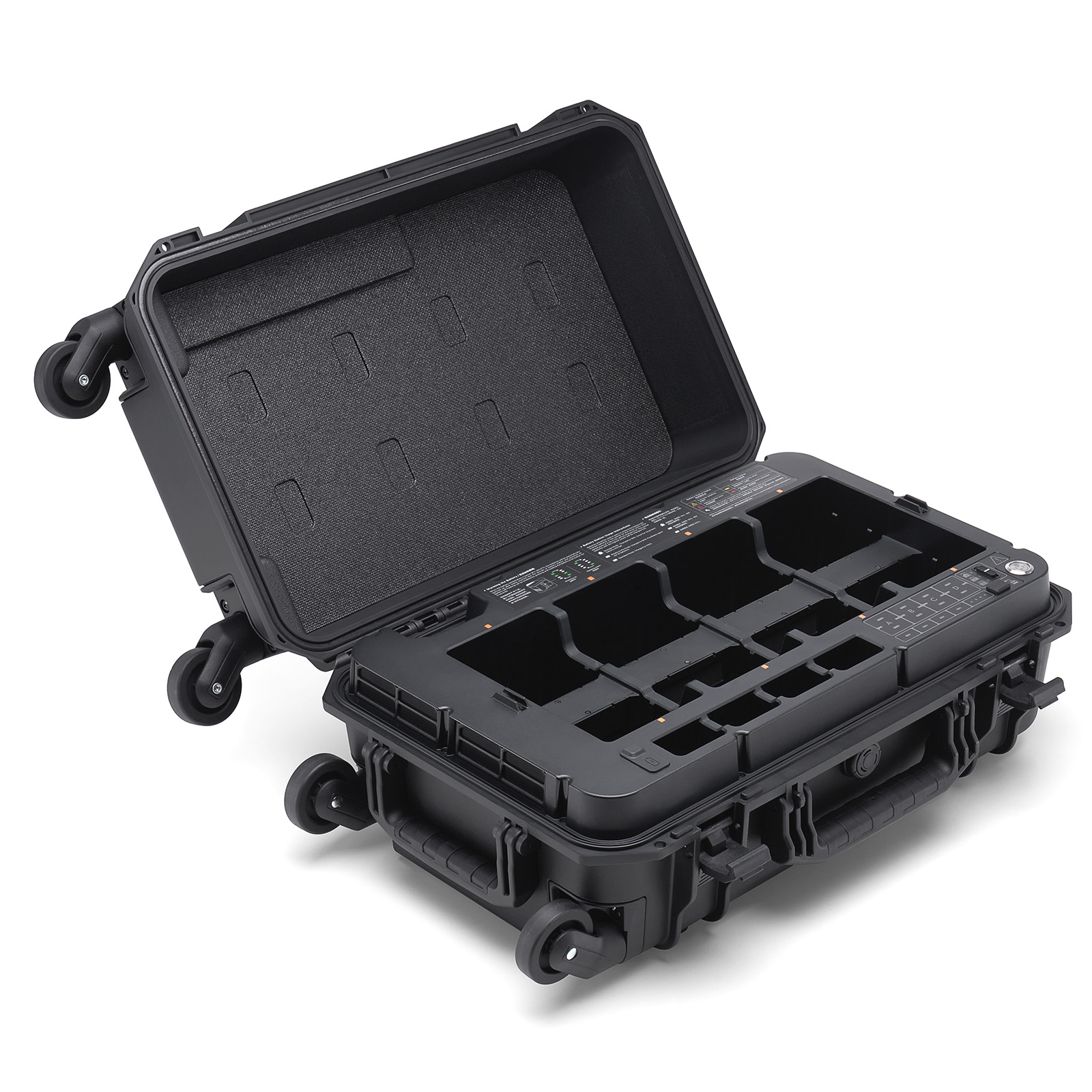

New-generation intelligent charging station

The new BS65 intelligent battery station offers a unique solution for recharging, storing and transporting batteries.

Multiple recharging modes

In Storage mode, the station recharges the battery to 50%, a useful solution for long-term storage. Secondly, in Ready to Fly mode, the station rapidly recharges several sets of batteries to 90% for operation at any time. Finally, battery life is extended.

Transitions made easy

The battery station is designed with 360° wheels for easy transport and transitions.

Intelligent management

Once the battery station is connected to DJI RC Plus, the DJI Pilot 2 application displays battery status and information.
In addition, you can define :

• The number of self-download days,
• update firmware,
• export logs and
• other quick operations at the touch of a button.

Enhanced flight safety

• Matrice 350 RTK features a new arm-lock detection function that prevents arm unlocking, for greater peace of mind during flight.
• Featuring excellent night vision capabilities, the FPV camera clearly renders the environment and obstacles when flying at night. What’s more, it works in conjunction with the PinPoint function for better navigation and safer flight, facilitating night operations.
• Designed with a six-way binocular vision system and an infrared detection system. Finally, Matrice 350 RTK offers awareness, positioning and obstacle detection capabilities in six directions, as well as full protection during flight.
• Matrice 350 RTK features a new arm-lock detection function that prevents arm unlocking, for greater peace of mind during flight.

Powerful payloads

DJI Matrice 350 RTK supports a single pod down, two pods down and a single pod up, and features an open E-Port interface. With a maximum load capacity of 2.7 kg, it can carry up to three payloads simultaneously. This enables it to meet the needs of a wide range of operating scenarios, such as public safety, inspection and mapping.

Zenmuse H20 range

The four-sensor system (zoom camera, wide-angle camera, thermal camera and laser rangefinder) works in concert, enhanced by advanced intelligent algorithms, for outstanding detection and imaging performance.

Zenmuse H20N

The Zenmuse H20N features starlight sensors integrated into its zoom and wide-angle cameras. Combine it with thermal and zoom cameras and a laser rangefinder for a versatile hybrid payload that lives up to your expectations.

Zenmuse P1

The Zenmuse P1 integrates a full-frame sensor and interchangeable fixed lenses on a 3-axis stabilized gondola. Designed for in-flight photogrammetry missions, it offers unrivalled levels of efficiency and precision.

Zenmuse L1

Zenmuse L1 integrates a Livox LiDAR module, a high-precision IMU and a mapping camera. Used with the flight platform, it provides a complete solution for obtaining real-time 3D data all day long, efficiently capturing the details of complex structures and delivering ultra-precise reconstructed models.

Third-party payloads

Customized payloads – such as gas detectors, loudspeakers and multispectral sensors – can be combined with the Matrice 350 RTK using the DJI Payload Development Kit to extend its range of applications.

DJI Matrice 350 RTK intelligent operation

High-precision mapping

Matrice 350 RTK supports Waypoint, mapping, oblique and linear flight missions. What’s more, you can use the Terrain Tracking[12] or Intelligent Oblique[13] functions for efficient data collection. Finally, with DJI Terra, 2D and 3D HD digital results are rapidly obtained, for highly accurate and efficient mapping operations.

Air-ground coordination

With features such as high-precision PinPoint and cloud-based real-time mapping[14], Matrice 350 RTK provides air-ground and cloud-based coordination. What’s more, once the device has completed image collection, DJI FlightHub 2 quickly models the operation site. DJI FlightHub 2 transmits control information to the latter, as well as to operators on the ground. Finally, both the radio control and FlightHub 2 support point, line and surface plotting, as well as real-time downloading. They work in concert with the aircraft to broadcast a live view of the operation in real time, eliminating communication barriers in collaborative air/ground operations.

Automated precision inspection

Thanks to Define POI, Matrice 350 RTK can generate and store flight route files that can be used at any time to automate operations. This also avoids wasting time and effort on repetitive inspections. When using AI Spot-Check[15], Matrice 350 RTK supports automatic framing and manual subject adjustment. This improves the accuracy of repetitive shots and the quality of the inspection operation.

User data security

• Media data encryption.
• Local data mode.
• One-click deletion of all device data.
• AES-256 video transmission encryption.
• Cloud API.

DJI Matrice 350 RTK Ecosystem

Payload development kit

Integration of various third-party payloads such as :

• Gas detectors, loudspeakers.
• Multispectral sensors.
• Computer modules, etc.

The Payload Development Kit supports E-Port, SkyPort V2 and DJI X-Port[18], considerably reducing the payload development cycle. It also maximizes the potential of your payloads in more diverse scenarios. Finally, E-Port is compatible with the Payload Development Kit V3 and later versions, as well as with third-party payloads from the Matrix 30 range.

Mobile development kit

Thanks to an extensive network of third-party mobile applications, it’s possible to unlock the capabilities of your drone’s platform to meet specific mission requirements. Finally, the Mobile Development Kit facilitates the development of highly customizable mobile applications on Matrice 350 RTK.

Cloud API

With the Cloud API, it is possible to connect Matrice 350 RTK directly to third-party cloud platforms. The DJI Pilot 2 application provides access to functions such as data transfer, live streaming and flight route distribution.
